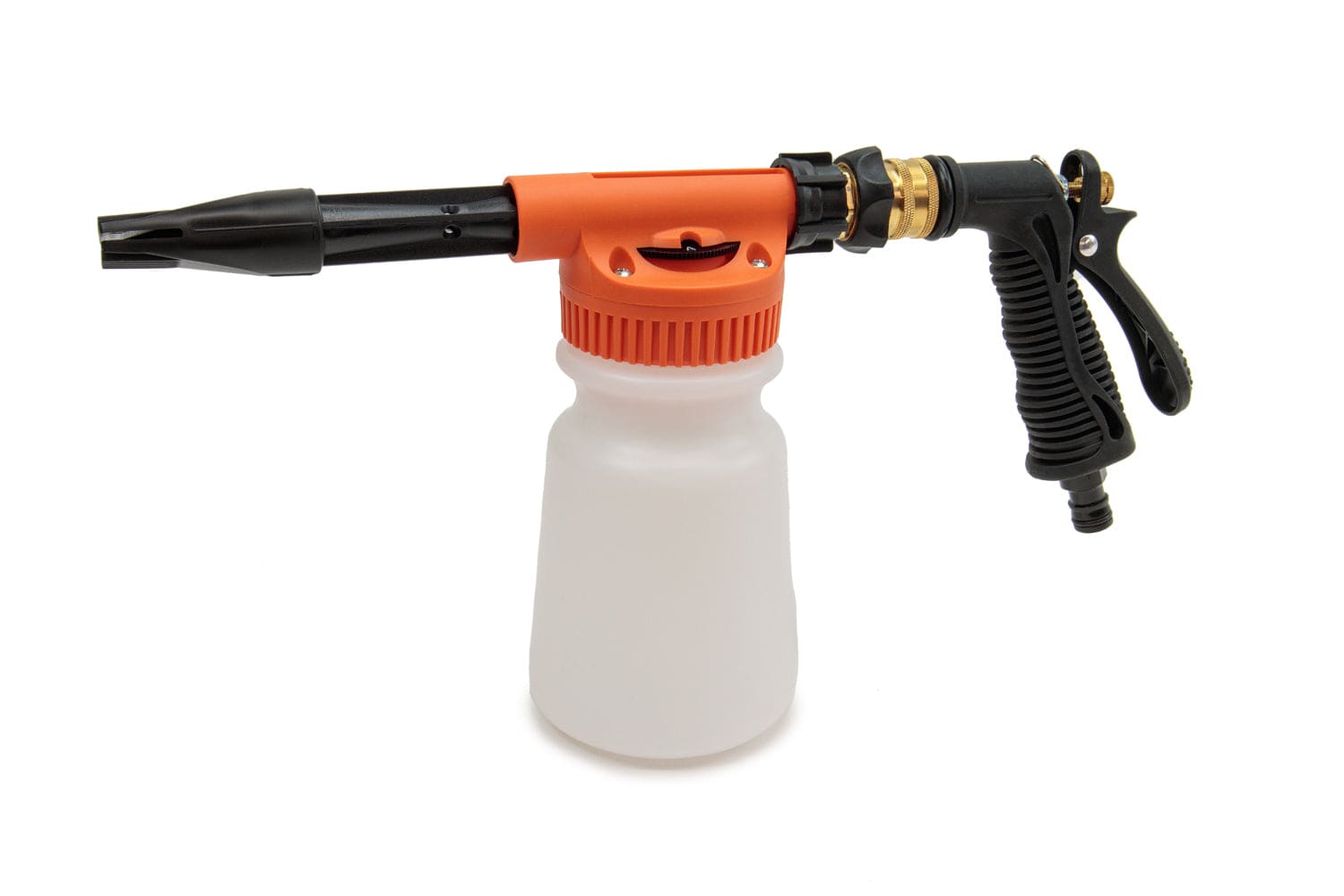

[Foam Cannon] (for Garden Hose)

Use Your Standard Garden Hose!  Produces thick, sticky foam in a fan pattern that easily covers large swaths of the vehicle surface in each path.  The easiest way to get car wash shampoo on the vehicle without having to have an expensive and noisy pressure washer

Durable Construction:  Crafted with high-quality brass for core components, and a chemical-resistant and durable thick-sided HDPE bottle.

Adjustable Dilution Ratio:  Easy-to-turn knob at the top of the cap allows 6 dilution ratios, which allows the user to dial in the desired thickness of shampoo.  Also allows adjustment of mixing ratio to match the cleaning chemical being used.  Mixing ratios include:

A.    128:1
B.    64:1
C.    32:1
D.    20:1
E.    10:1
F.    no chemical—for rinsing

Versatile Spray Pattern:  Quick-release nozzle converts from vertical to horizontal fan.
Convenient Trigger Features.  Easy to use and automatically shuts off upon release.

 “Lock On” tab is also available to keep the product flowing without having to hold in the trigger.  Adjustable maximum output if you need to control the flow of product.

Ready for Rinsing:  Simply dial the mixing ration knob to “0” (zero), and you can use the foam cannon to rinse down the vehicle.  No need to change out to another nozzle.
Quick-release Swivel Connector.  In case you DO want to switch out the foam cannon with another appliance.  (Fit the other appliance with a 3/8” plug, available separately.)

The quick-connect also swivels, allowing the bottle to dangle freely while moving around with the unit.

Wide Mouth Bottle:  Features a newly designed large plastic cap for smooth, easy attachment and removal.  The oversized bottleneck allows for easy filling of soap and water, minimizing spills.

Also offered with Pressure Washer connection.

INSTRUCTIONS:

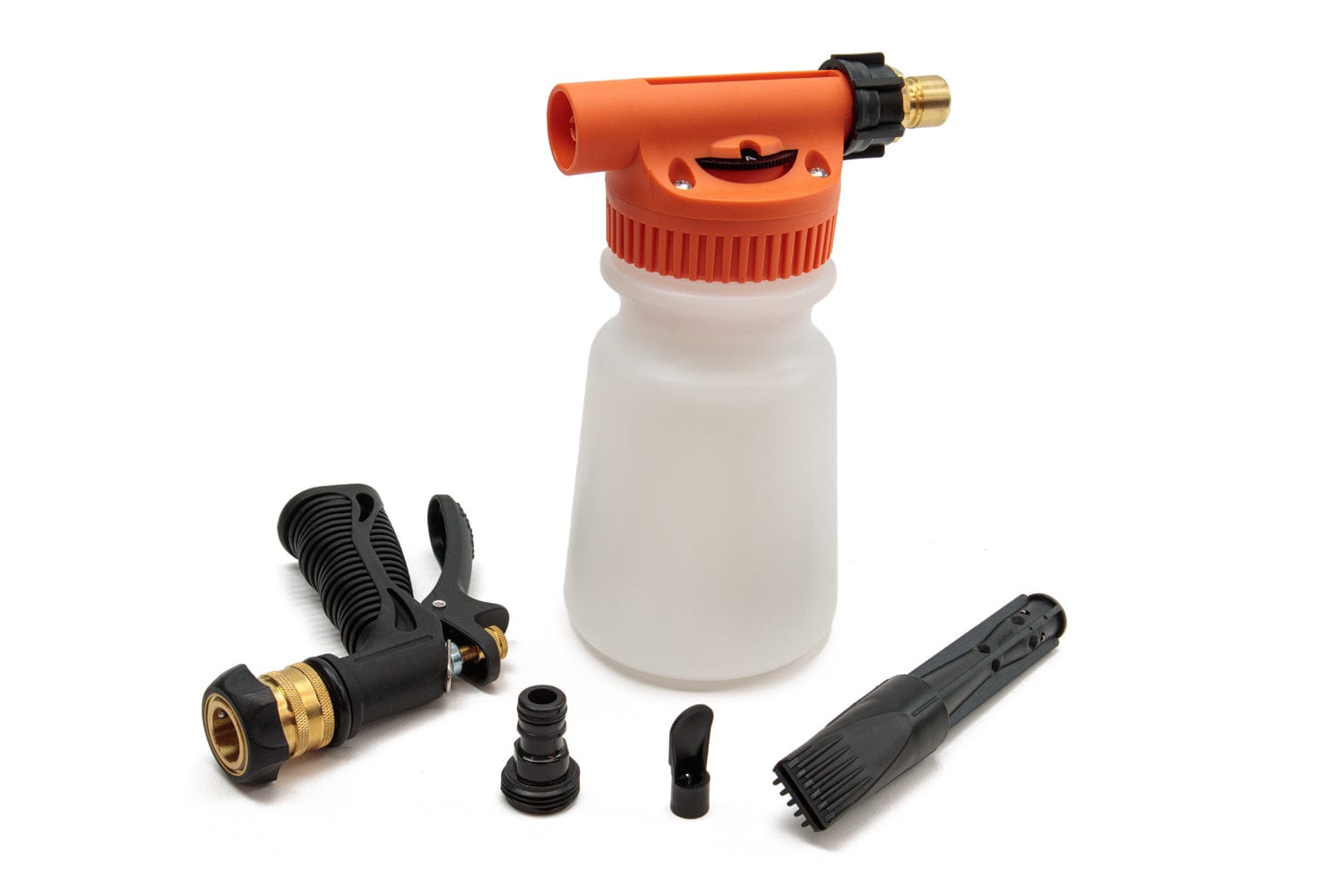

1.    Foam cannon easily assembles using the included instructions.
2.    Fill the bottle with your favorite foaming car wash.
3.    Adjust the dilution ratio by turning the black dial on the top of the orange cap.  Make sure it “clicks” into place.  Match as closely as possible the recommended mixing ratio indicated on the bottle label of the chemical you are using.  Check the mixing ratio guide above.
4.    Cover the area (e.g., vehicle) with sweeping motions.  Increase sweeping pace for thinner coverage and decrease for thicker coverage.
5.    Flush out the unit with clean water before storing until the next use.

WARNINGS

1.    Do not spray toward electrical outlets or electrical devices.  (Current can travel up the spray pattern and shock the user.)
2.    Ensure the device sits upright when setting it down so that product in the foam bottle does not accidentally leak out.
3.    Do not spray any chemical at another person.
4.    Not recommended for household water pressure greater than 80 psi.

SPECIFICATIONS

•    Input:  3/4” male standard garden hose
•    Infinitely variable trigger with “lock on” tab and adjustable “max output” screw
•    3/8” swivel quick connector between gun handle and foam bottle
•    Large mouth 28.2 oz chemical bottle
•    Mixing ratios:  128:1, 64:1, 32:1, 20:1, 10:1, 0 (zero—water only)
•    Output:  Dual-position quick-change foam outlet (vertical or horizontal)
•    Operational psi range:  35-85 psi
•    Flow rate depends on incoming water supply being used

Mixing ratio control knob
